OWSLib svn trunk documentation¶

Tom Kralidis · 2012-02-11

$ easy_install OWSLib

$ svn co https://owslib.svn.sourceforge.net/svnroot/owslib/trunk/

$ git clone git@github.com:tomkralidis/owslib.git

>>> from owslib.wms import WebMapService
>>> wms = WebMapService('http://wms.jpl.nasa.gov/wms.cgi', version='1.1.1')
>>> wms.identification.type
'OGC:WMS'
>>> wms.identification.title
'JPL Global Imagery Service'

>>> list(wms.contents)
['global_mosaic', 'global_mosaic_base', 'us_landsat_wgs84', 'srtm_mag', 'daily_terra_721', 'daily_aqua_721', 'daily_terra_ndvi', 'daily_aqua_ndvi', 'daily_terra', 'daily_aqua', 'BMNG', 'modis', 'huemapped_srtm', 'srtmplus', 'worldwind_dem', 'us_ned', 'us_elevation', 'us_colordem']

>>> wms['global_mosaic'].title
'WMS Global Mosaic, pan sharpened'
>>> wms['global_mosaic'].boundingBox
>>> wms['global_mosaic'].boundingBoxWGS84
(-180.0, -60.0, 180.0, 84.0)
>>> wms['global_mosaic'].crsOptions
['EPSG:4326', 'AUTO:42003']
>>> wms['global_mosaic'].styles
{'pseudo_bright': {'title': 'Pseudo-color image (Uses IR and Visual bands, 542 mapping), gamma 1.5'}, 'pseudo': {'title': '(default) Pseudo-color image, pan sharpened (Uses IR and Visual bands, 542 mapping), gamma 1.5'}, 'visual': {'title': 'Real-color image, pan sharpened (Uses the visual bands, 321 mapping), gamma 1.5'}, 'pseudo_low': {'title': 'Pseudo-color image, pan sharpened (Uses IR and Visual bands, 542 mapping)'}, 'visual_low': {'title': 'Real-color image, pan sharpened (Uses the visual bands, 321 mapping)'}, 'visual_bright': {'title': 'Real-color image (Uses the visual bands, 321 mapping), gamma 1.5'}}

>>> [op.name for op in wms.operations]
['GetCapabilities', 'GetMap']
>>> wms.getOperationByName('GetMap').methods
{'Get': {'url': 'http://wms.jpl.nasa.gov/wms.cgi?'}}
>>> wms.getOperationByName('GetMap').formatOptions
['image/jpeg', 'image/png', 'image/geotiff', 'image/tiff']

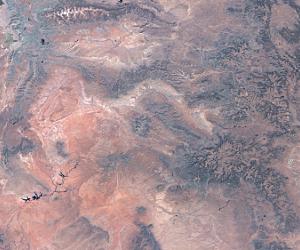

>>> img = wms.getmap(   layers=['global_mosaic'],
...                     styles=['visual_bright'],
...                     srs='EPSG:4326',
...                     bbox=(-112, 36, -106, 41),
...                     size=(300, 250),
...                     format='image/jpeg',
...                     transparent=True
...                     )
>>> out = open('jpl_mosaic_visb.jpg', 'wb')
>>> out.write(img.read())
>>> out.close()

>>> from owslib.csw import CatalogueServiceWeb
>>> csw = CatalogueServiceWeb('http://geodiscover.cgdi.ca/wes/serviceManagerCSW/csw')
>>> csw.identification.type
'CSW'
>>> [op.name for op in csw.operations]
['GetCapabilities', 'GetRecords', 'GetRecordById', 'DescribeRecord', 'GetDomain']

>>> csw.getdomain('GetRecords.resultType')
>>> csw.results
{'values': ['results', 'validate', 'hits'], 'parameter': 'GetRecords.resultType', 'type': 'csw:DomainValuesType'}
>>>

>>> csw.getrecords(keywords=['birds'], maxrecords=20)
>>> csw.results
{'matches': 101, 'nextrecord': 21, 'returned': 20}
>>> for rec in csw.records:
...     print csw.records[rec].title
...
ALLSPECIES
NatureServe Canada References
Bird Studies Canada - BirdMap WMS
Parks Canada Geomatics Metadata Repository
Bird Studies Canada - BirdMap WFS
eBird Canada - Survey Locations
WHC CitizenScience WMS
Project FeederWatch - Survey Locations
North American Bird Banding and Encounter Database
Wildlife Habitat Canada CitizenScience WFS
Parks Canada Geomatics Metadata Repository
Parks Canada Geomatics Metadata Repository
Wildlife Habitat Canada CitizenScience WMS
Canadian IBA Polygon layer
Land
Wildlife Habitat Canada CitizenScience WMS
WATER
Parks Canada Geomatics Metadata Repository
Breeding Bird Survey
SCALE
>>>

>>> csw.getrecords(keywords=['birds'],bbox=[-141,42,-52,84])
>>> csw.results
{'matches': 3, 'nextrecord': 0, 'returned': 3}
>>>

>>> csw.getrecords(keywords=['birds', 'fowl'])
>>> csw.results
{'matches': 107, 'nextrecord': 11, 'returned': 10}
>>>

>>> csw.getrecordbyid(id=['9250AA67-F3AC-6C12-0CB9-0662231AA181'])
>>> c.records['9250AA67-F3AC-6C12-0CB9-0662231AA181'].title
'ALLSPECIES'

>>> csw.getrecords(cql='csw:AnyText like "%birds%"')

>>> csw.transaction(ttype='insert', typename='gmd:MD_Metadata', record=open(file.xml).read())

>>> # update ALL records
>>> csw.transaction(ttype='update', typename='csw:Record', propertyname='dc:title', propertyvalue='New Title')
>>> # update records satisfying keywords filter
>>> csw.transaction(ttype='update', typename='csw:Record', propertyname='dc:title', propertyvalue='New Title', keywords=['birds','fowl'])
>>> # update records satisfying BBOX filter
>>> csw.transaction(ttype='update', typename='csw:Record', propertyname='dc:title', propertyvalue='New Title', bbox=[-141,42,-52,84])

>>> # delete ALL records
>>> csw.transaction(ttype='delete', typename='gmd:MD_Metadata')
>>> # delete records satisfying keywords filter
>>> csw.transaction(ttype='delete', typename='gmd:MD_Metadata', keywords=['birds','fowl'])
>>> # delete records satisfying BBOX filter
>>> csw.transaction(ttype='delete', typename='gmd:MD_Metadata', bbox=[-141,42,-52,84])

>>> csw.harvest('http://host/url.xml', 'http://www.isotc211.org/2005/gmd')

>>> from owslib.iso import *
>>> m=MD_Metadata(etree.parse('tests/data/9250AA67-F3AC-6C12-0CB9-0662231AA181_iso.xml')
>>> m.identification.topiccategory
'farming'
>>>

>>> import urllib2
>>> from owslib.etree import etree
>>> from owslib.iso import CodelistCatalogue
>>> e=etree.parse('gmxCodelists.xml')
>>> c=CodelistCatalogue(e)
>>> print c.getcodelistdictionaries()
['MD_RestrictionCode', 'CI_OnLineFunctionCode', 'DQ_EvaluationMethodTypeCode', 'DS_InitiativeTypeCode', 'MD_MaintenanceFrequencyCode', 'MD_SpatialRepresentationTypeCode', 'MD_ImagingConditionCode', 'MD_ObligationCode', 'MD_GeometricObjectTypeCode', 'MD_ScopeCode', 'MD_KeywordTypeCode', 'MD_CharacterSetCode', 'CI_PresentationFormCode', 'MX_ScopeCode', 'CI_DateTypeCode', 'MD_TopicCategoryCode', 'MD_DatatypeCode', 'MD_ProgressCode', 'MD_MediumNameCode', 'MD_ClassificationCode', 'DS_AssociationTypeCode', 'CI_RoleCode', 'MD_TopologyLevelCode', 'MD_DimensionNameTypeCode', 'MD_CoverageContentTypeCode', 'MD_MediumFormatCode', 'MD_PixelOrientationCode', 'MD_CellGeometryCode']
>>> print c.getcodedefinitionidentifiers('CI_RoleCode')
['author', 'processor', 'publisher', 'custodian', 'pointOfContact', 'distributor', 'user', 'resourceProvider', 'originator', 'owner', 'principalInvestigator']

>>> from owslib import crs
>>> c=crs.Crs('EPSG:4326')
>>> c.code
4326
>>> c=crs.Crs('urn:ogc:def:crs:EPSG::4326')
>>> c.authority
'EPSG'
>>> c.axisorder
'yx'
>>> c=crs.Crs('http://www.opengis.net/gml/epsg.xml#4326')
>>> c.code
4326
>>> c.axisorder
'xy'
>>> c=crs.Crs('urn:x-ogc:def:crs:EPSG:6.11:2192')
>>> c.axisorder
'xy'
>>> c.code
2192
>>> c.version
'6.11'

Author:	Tom Kralidis
Contact:	tomkralidis at hotmail.com
Release:	svn trunk
Date:	2012-02-11

Standard	Version(s)
OGC WMS	1.1.1
OGC WFS	1.0.0, 2.0.0
OGC WCS	1.0.0, 1.1.0
OGC WMC	1.1.0
OGC SOS	1.0.0
OGC CSW	2.0.2
OGC Filter	1.1.0
OGC OWS Common	1.0.0, 1.1.0, 2.0
NASA DIF	9.7
FGDC CSDGM	1998
ISO 19139	2007
Dublin Core	1.1
